Equipment for CentroPlus / CentroPlus-B

CentroPlus and CentroPlus-B solid fuel and wood pellet fired boilers:

The steel hot water boiler CentroPlus and CentroPlus-B can be fired with wood pellets and with solid fuel. For wood pellet firing the Cm Pelet-set for CentroPlus must be added(volume of the pellet tank 0,37 m3 or 0,8 m3). In addition to wood pellet only and solid fuel only firing there is the availability of the prime fuel firing with automatic start-up of the secondary burner whenever the solid fuel feeding is insufficient to sustain the required water temperature. This “mini-plant” is controlled by a digital regulator and draught regulator, if the boiler is fired by the solid fuel. The pellet tank is an integral part of the plant and it is filled up from its upper side, according to need. With pellet firing, there is a possible fuel cost saving of up to 40%, compared with the oil feeding system. Alternatively, an oil burner can be connected to the boiler and the boiler control function for CentroPlus, i.e. in the pellet/oil or oil/solid fuel version.

CentroPlus and CentroPlus-B Solid Fuel /Wood Pellets:

CentroPlus and CentroPlus-B for solid and oil firing:

The steel hot water boilers CentroPlus and CentroPlus-B can be fired by solid fuel and oil. For this kind of firing, an oil burner and the boiler controller for EKO-CK/CKB should be fitted. In addition to liquid fuel only or only solid fuel only firing, there is the availability of solid fuel firing with automatic start-up of the oil burner whenever the solid fuel feeding is insufficient ti sustain the required water temperature. This “mini-plant” is controlled by a digital regulator and draught regulator, if the boiler is fired by solid fuel. Alternatively, a Cm Pelet-set for CentroPlus can be connected to the boiler i.e. in the pellet/oil or pellet/solid fuel version.

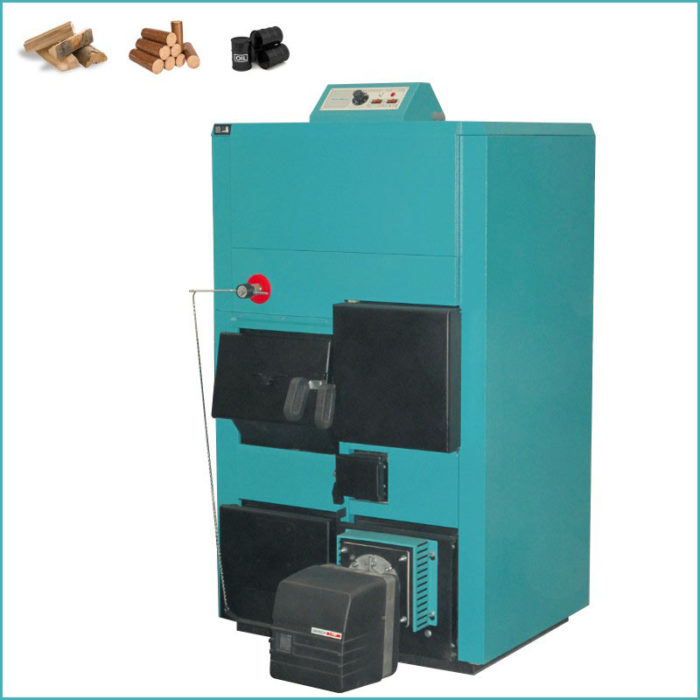

CentroPlus / CentroPlus-B -Solid Fuel / Oil:

CentroPlus and CentroPlus-B for oil and wood pellet firing:

The steel hot water boilers CentroPlus and CentroPlus-B can be fired by wood pellets and by oil. For this kind of firing, the Cm Pelet-set for CentroPlus together with the boiler regulator for the pellet/oil burner (volume of the pellet tank 0,37 m3 or 0,8 m3) must be fitted. In addition to pellet firing or oil firing alone, there is the availability of pellet firing with automatic start-up of the oil burner whenever, for example the pellets are burned out. This “mini-plant” is controlled by the integrated digital boiler regulator, which regulates both burners. The pellet tank is an integral part of the plant and it is filled up from the upper side, according to need. If the oil burner is removed, there is the option of solid fuel/pellet firing in combination. Alternatively by fitting the oil burner, there is the option of a solid/liquid firing combination.

CentroPlus / CentroPlus-B – Wood Pellets / Oil:

Centrometal d.o.o. shall not be responsible for possible incorrect data caused by error made in transcription and all figures and diagrams are for explanatory purposes only and relevant adjustment have to be made at the spot. In any case, it reserves the right to modify its products as deemed to be required and useful without any prior notification.
