Indoor unit of split heat pump Tower-S/170

A heat pump can be defined as a comprehensive solution for heating, cooling and domestic hot water heating. The indoor unit of the split heat pump is an integrated “all-in-one” system that is able to heat or cool the space and prepare hot water for consumption. One of the great advantages of the Tower-S 170 is the minimal space it takes up, because with floor plan dimensions of 600x600mm it takes up the same space as a washing machine next to which it is usually installed in apartments. It can replace any type of boiler or work in combination with it, in an integrated hybrid system. During installation, it is only necessary to connect the heating supply/return pipes, hot/cold water/recirculation and freon part to the outdoor unit to the Tower. A very practical and effective solution for apartments and houses!

PRODUCT CHARACTERISTICS

  • null
    • Air-water heat pumps
    • Split models 6-16 kW
    • Compact dimensions
  • null
    • Ecological working medium – R32
    • Expansion vessel – 8 liters
    • Electric heater – 3/9 kW
    • Controller with touchscreen
  • null
    • Accumulation tank
    • One direct heating circuit
    • One mixing heating circuit (additional option)
  • null
    • DHW tank – 170 l
    • Expansion vessel – 12 liters
    • Safety valve
    • Electric heater – 2 kW (additional option)

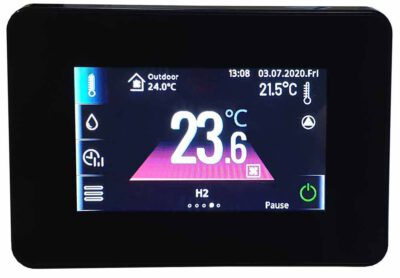

CONTROLLER WITH TOUCH SCREEN

COMPREHENSIVE SOLUTION FOR HEATING AND COOLING

  • Controller with a color touch screen controls with heat pump, up to two mixed heating/cooling circuits, one direct heating/cooling circuit and DHW heating (with recirculation)
  • It can be connected to underfloor heating/cooling, fan coils and/or low-temperature radiator heating
  • It is possible subsequent connection to the web portal

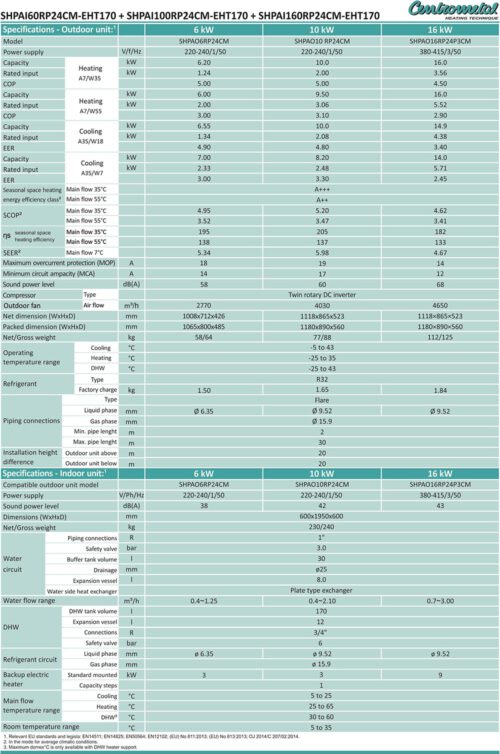

TECHNICAL DATA:

TECHNICAL INSTRUCTIONS:

CROSS SECTION:
